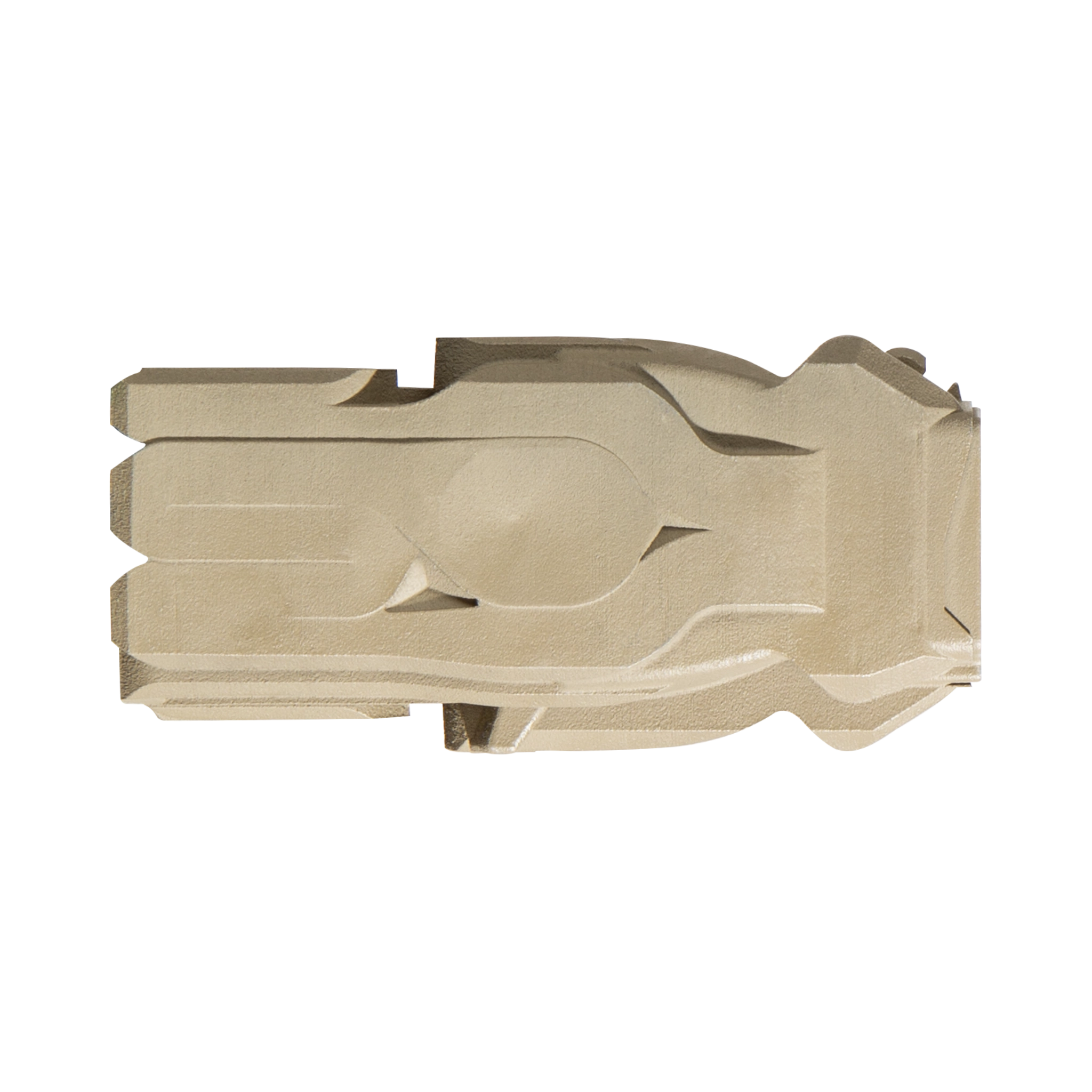

MFMD-6.5-1.1
As shown on Geissele MRGG-S 20″
Lab Data
Geissele
MRGG-S 20″
Performance Measurements Comparison
Performance Measurements Comparison
Performance Measurements Summary

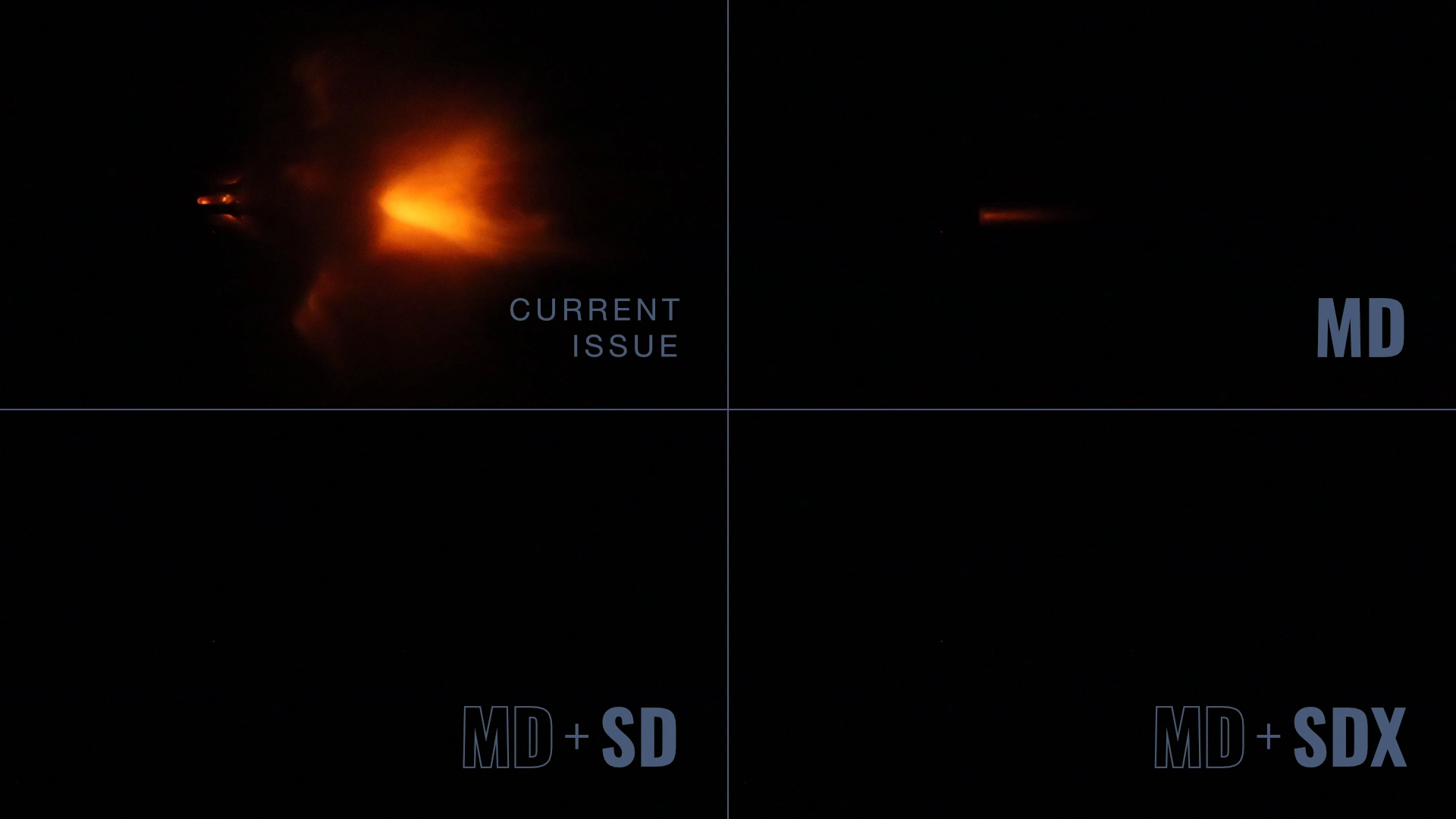

Flash Comparison Stills
Comparing the visual flash signature of the current issued flash hider versus the MFMD-6.5-1.1 system in each available configuration: MD only, MD+SD, and MD+SDX.
Forward-Directed Gas Flow: 45° View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-6.5-1.1-MD.
Forward-Directed Gas Flow: Overhead View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-6.5-1.1-MD.
Forward-Directed Gas Flow: Front View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-6.5-1.1-MD.
Bolt Velocity Analysis
Weapon systems equipped with the MFMD-6.5-1.1 have a bolt velocity change of ±2% when compared to baseline configurations across all firing schedules.
Fitment Requirements
Your weapon system must satisfy the following constraints in order to use MFMD-6.5-1.1.
