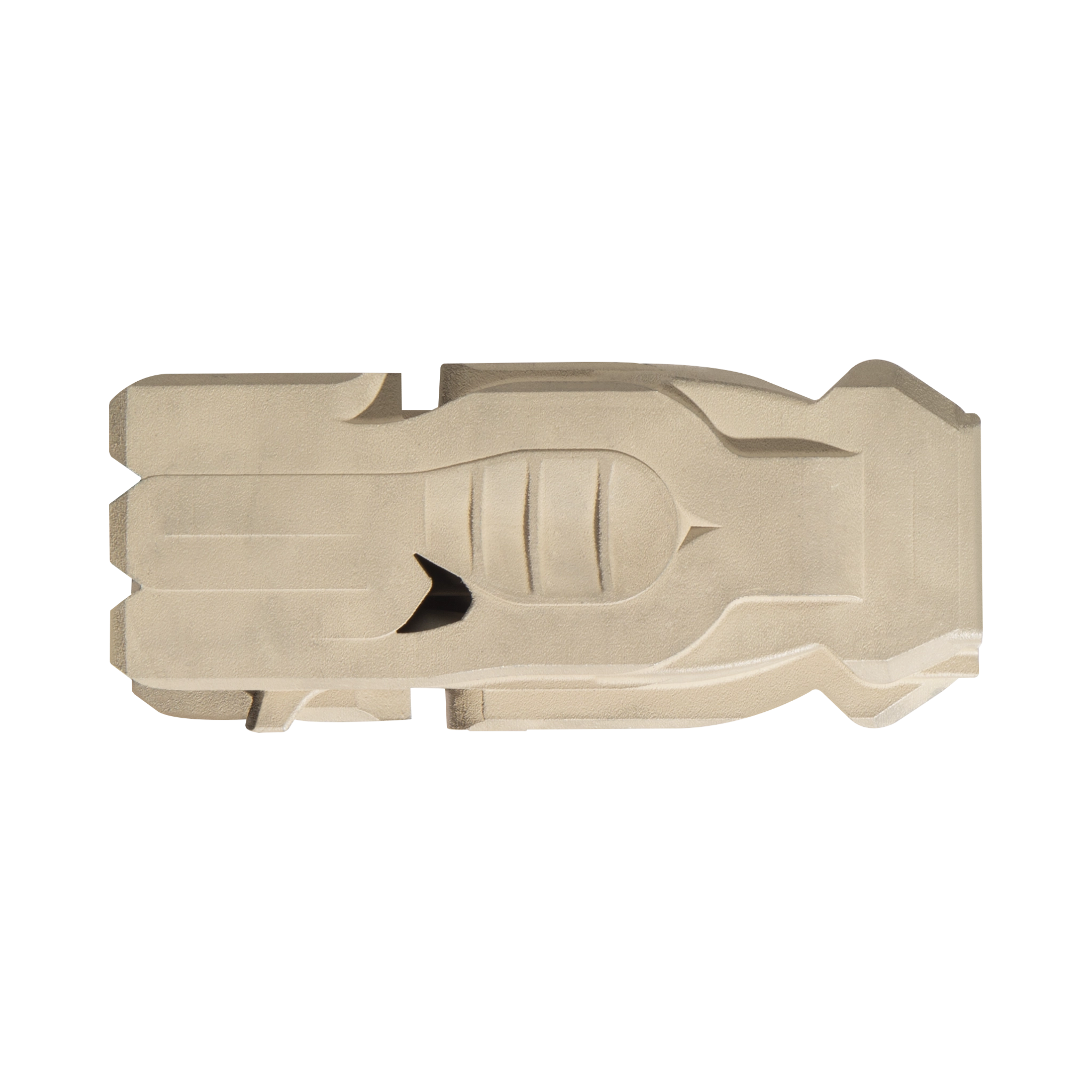

MFMD-6.8-2.0MG
As shown on SIG M250 16″
Lab Data
SIG Sauer
M250 16″
Performance Measurements Comparison
Performance Measurements Comparison
Performance Measurements Summary

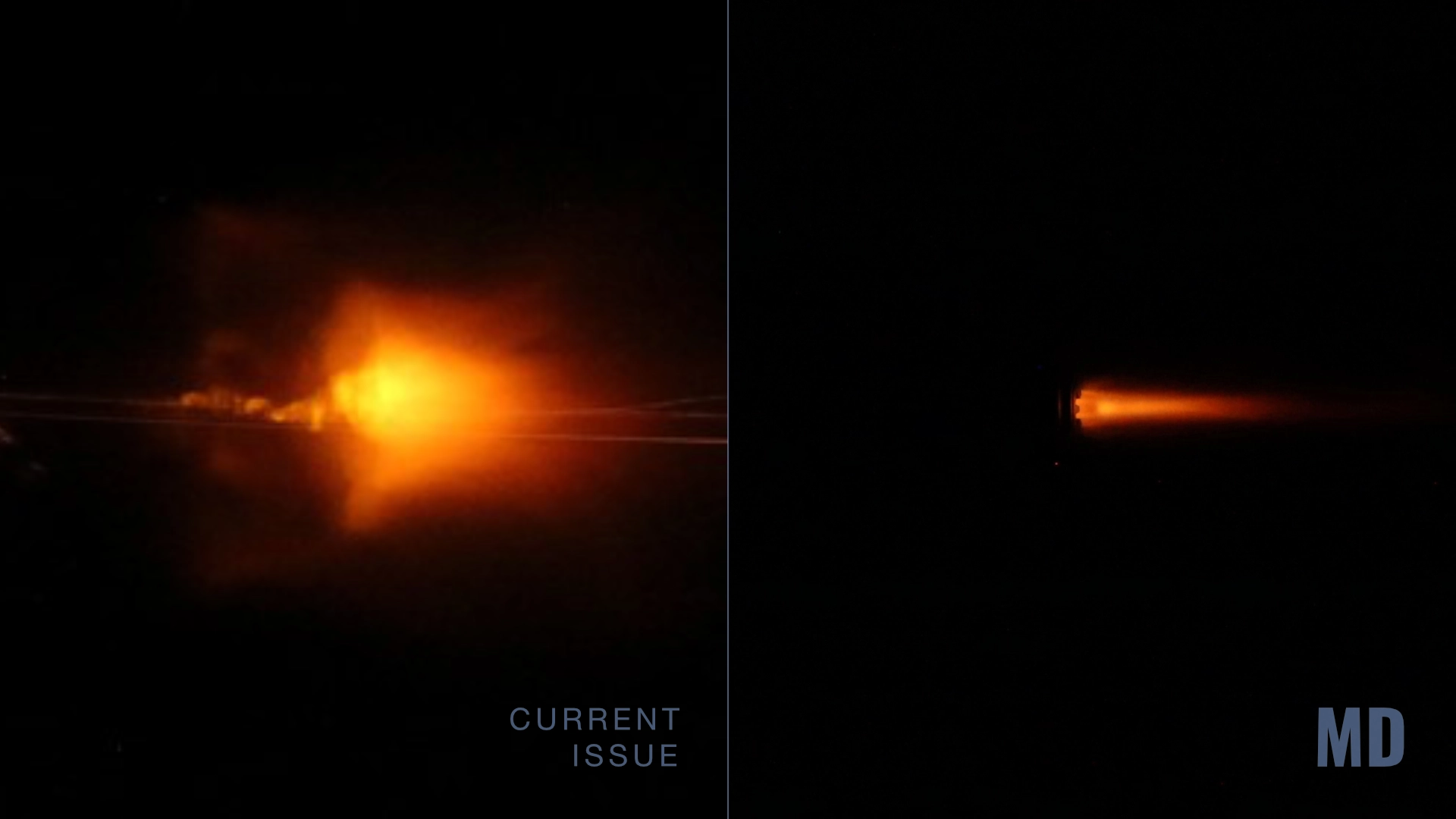

Flash Comparison Stills
Comparing the visual flash signature of the current issued flash hider versus the MFMD-6.8-2.0MG system in each available configuration: MD only, MD+SD, and MD+SDX.
Forward-Directed Gas Flow: 45° View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-6.8-2.0MG-MD.
Forward-Directed Gas Flow: Overhead View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-6.8-2.0MG-MD.
Forward-Directed Gas Flow: Front View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-6.8-2.0MG-MD.
Bolt Velocity Analysis
Weapon systems equipped with the MFMD-6.8-2.0MG have a bolt velocity change of ±2% when compared to baseline configurations across all firing schedules.

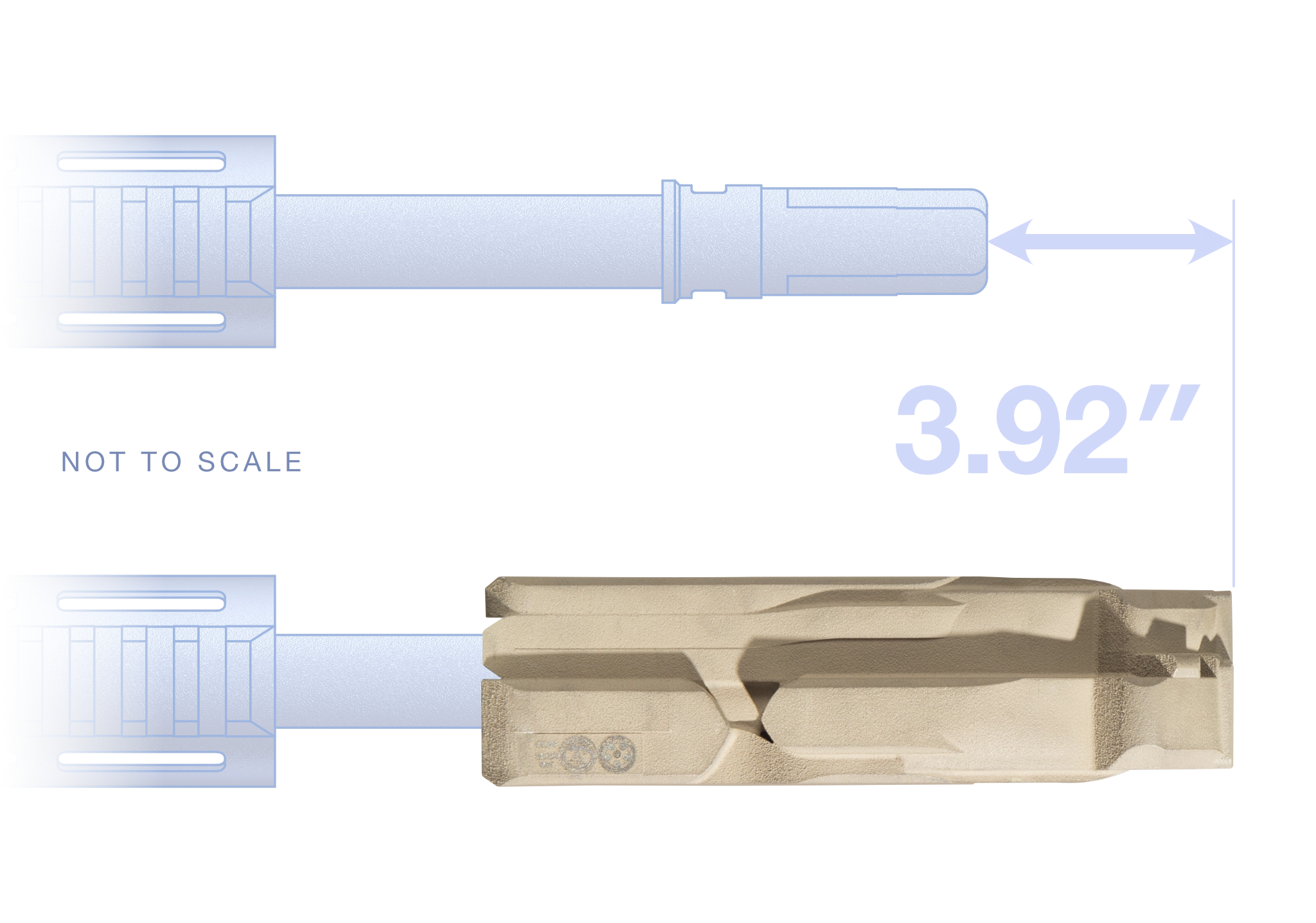

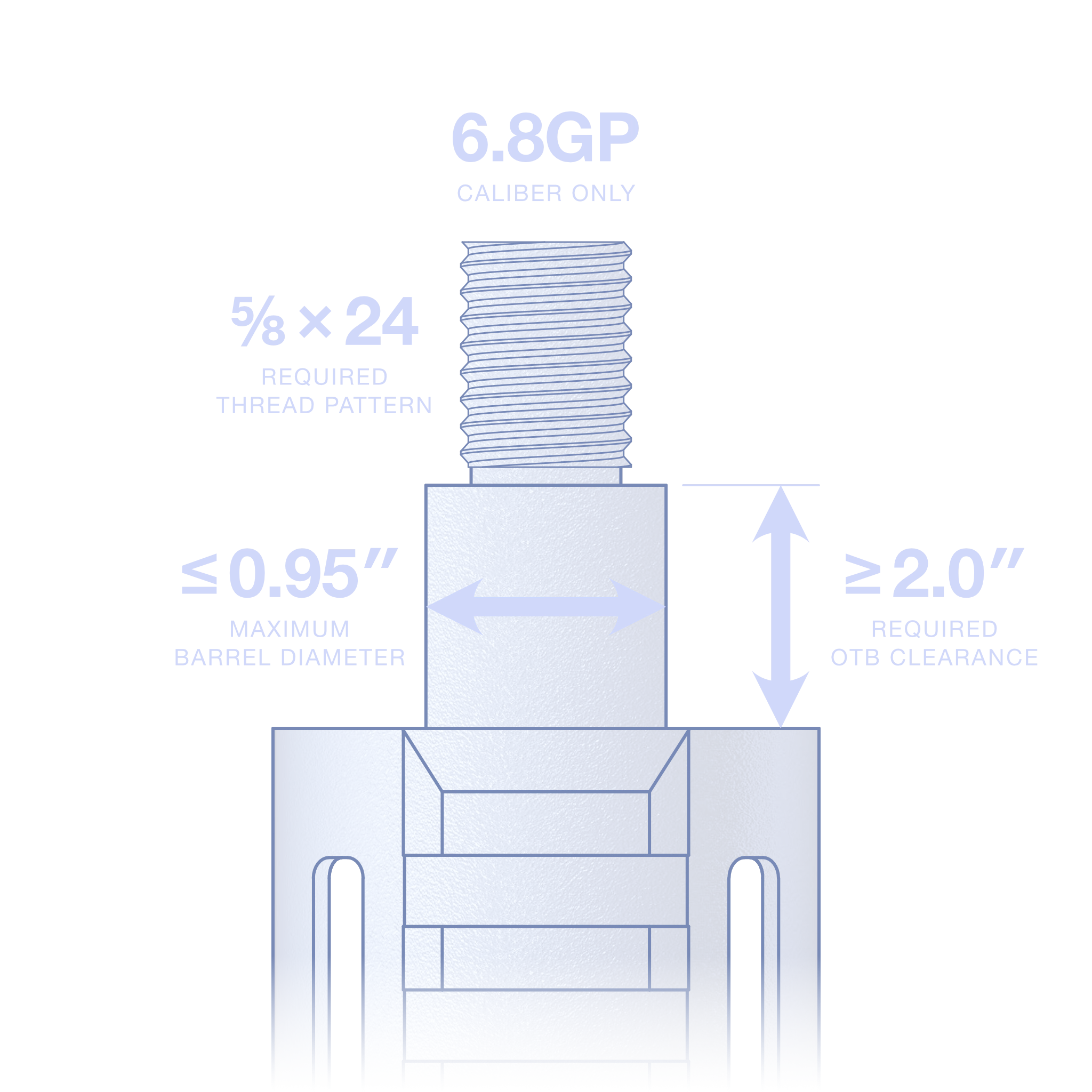

Fitment Requirements
Your weapon system must satisfy the following constraints in order to use MFMD-6.8-2.0MG.
