MFMD-.375-3.2
3/4 × 24
As shown on Barrett MRADELR 20″
Lab Data
Barrett
MRADELR 20″
Performance Measurements Comparison
Performance Measurements Comparison
Performance Measurements Summary

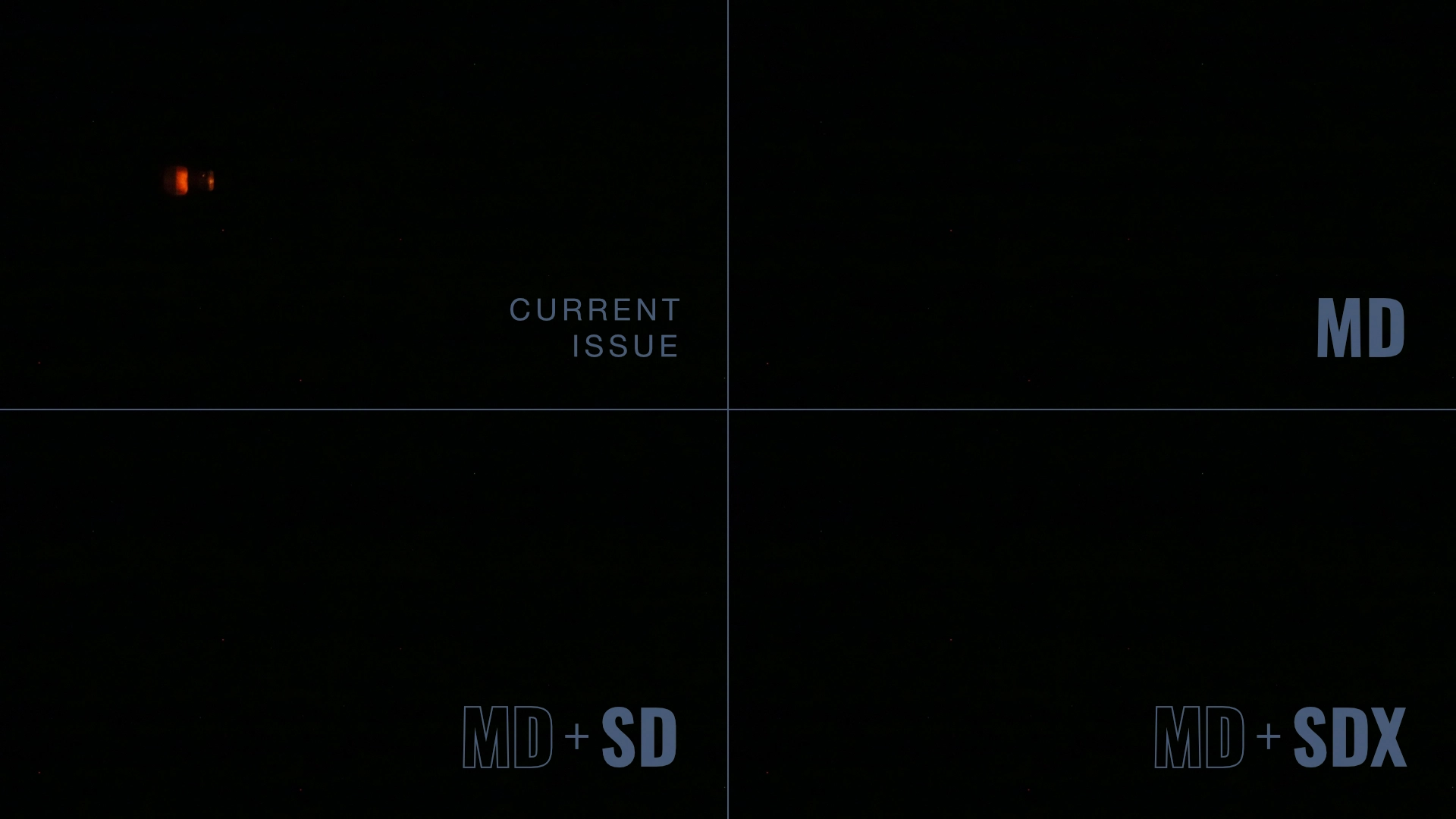

Flash Comparison Stills
Comparing the visual flash signature of the current issued flash hider versus the MFMD-.375-3.2-MD-3/4X24 system in each available configuration: MD only, MD+SD, and MD+SDX.
Forward-Directed Gas Flow: 45° View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-.375-3.2-MD-3/4X24.
Forward-Directed Gas Flow: Overhead View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-.375-3.2-MD-3/4X24.
Forward-Directed Gas Flow: Front View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-.375-3.2-MD-3/4X24.
