MFMD-6.5-2.8
3/4 × 24 C
As shown on Knights Armament M110A3 22″
Lab Data
Knights Armament
M110A3 22″
Performance Measurements Comparison
Performance Measurements Comparison

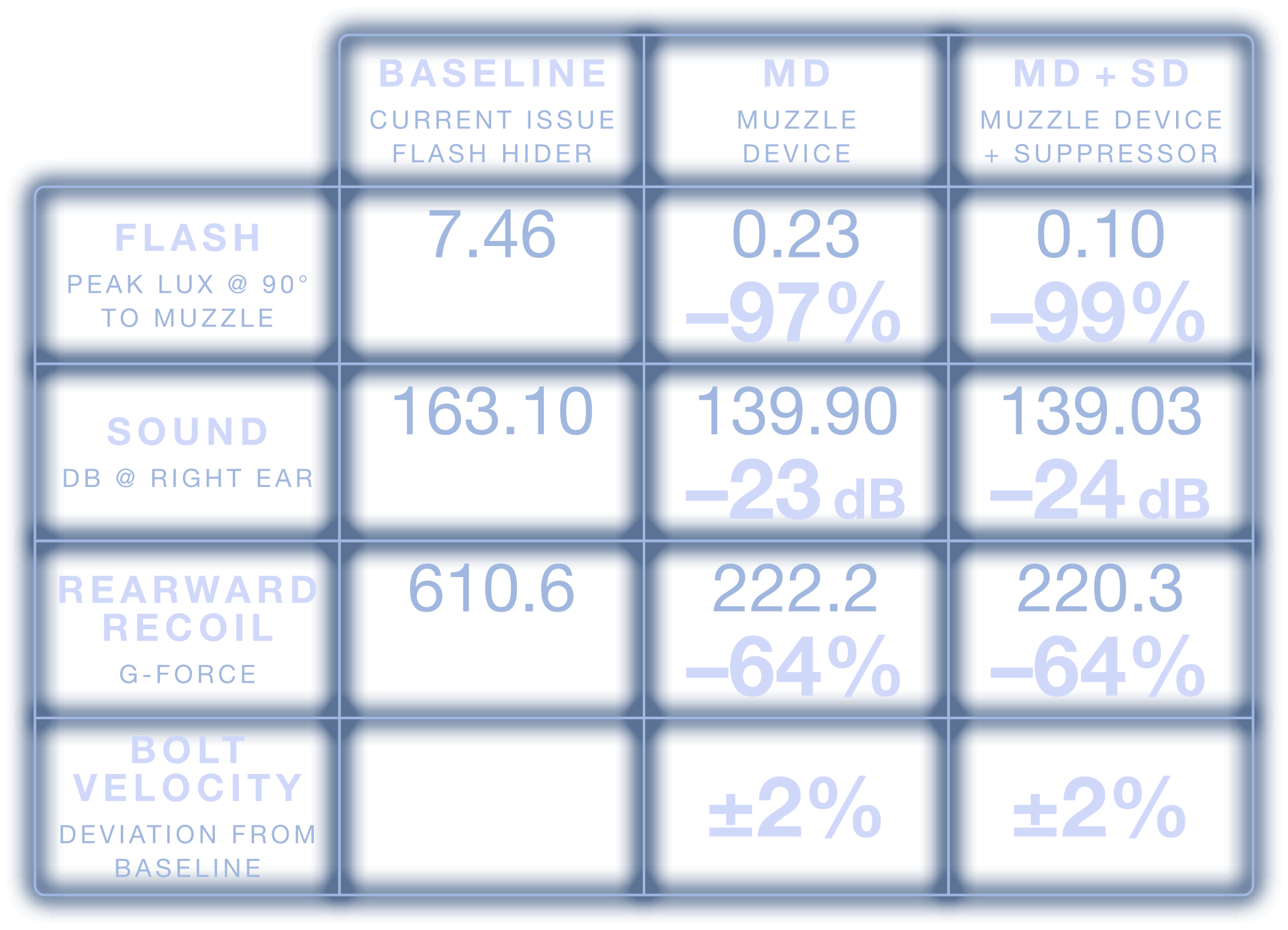

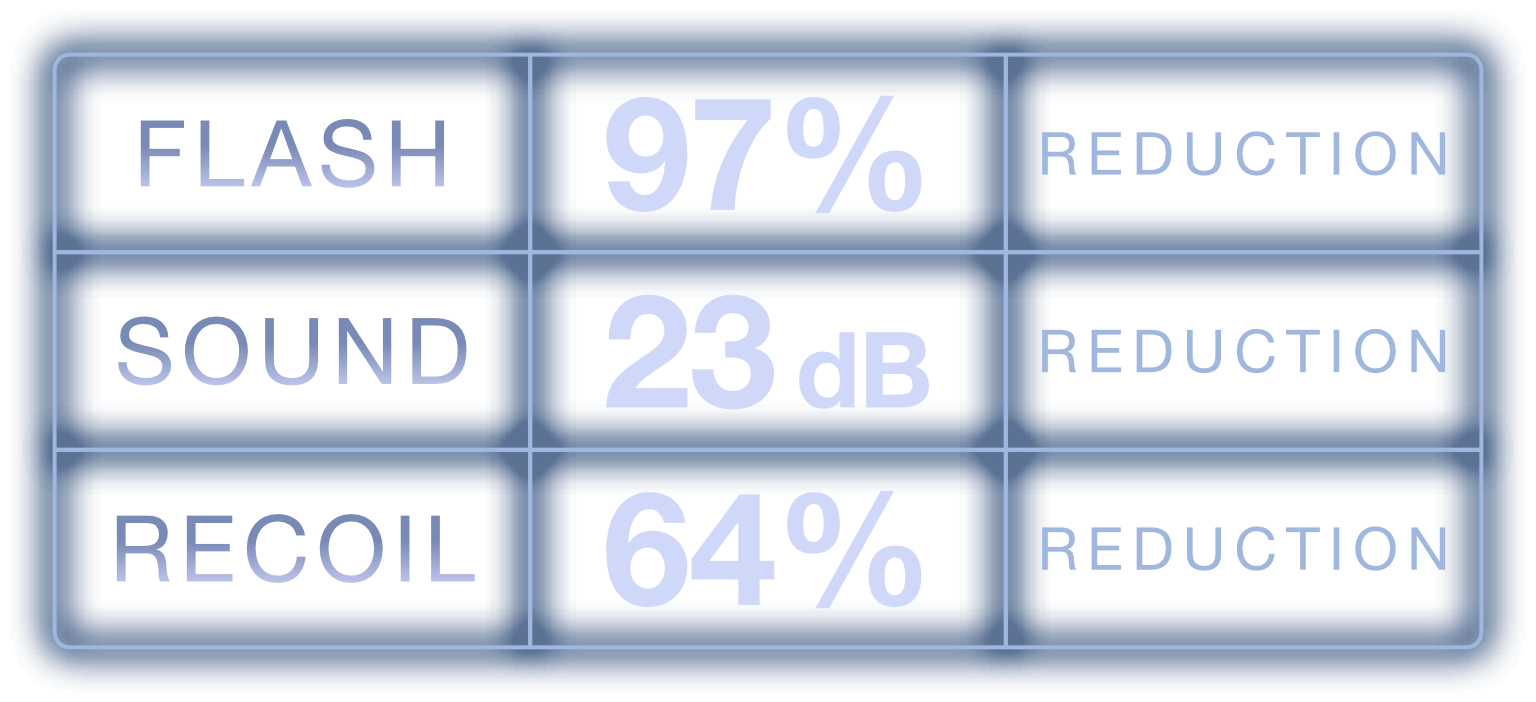

Performance Measurements Summary

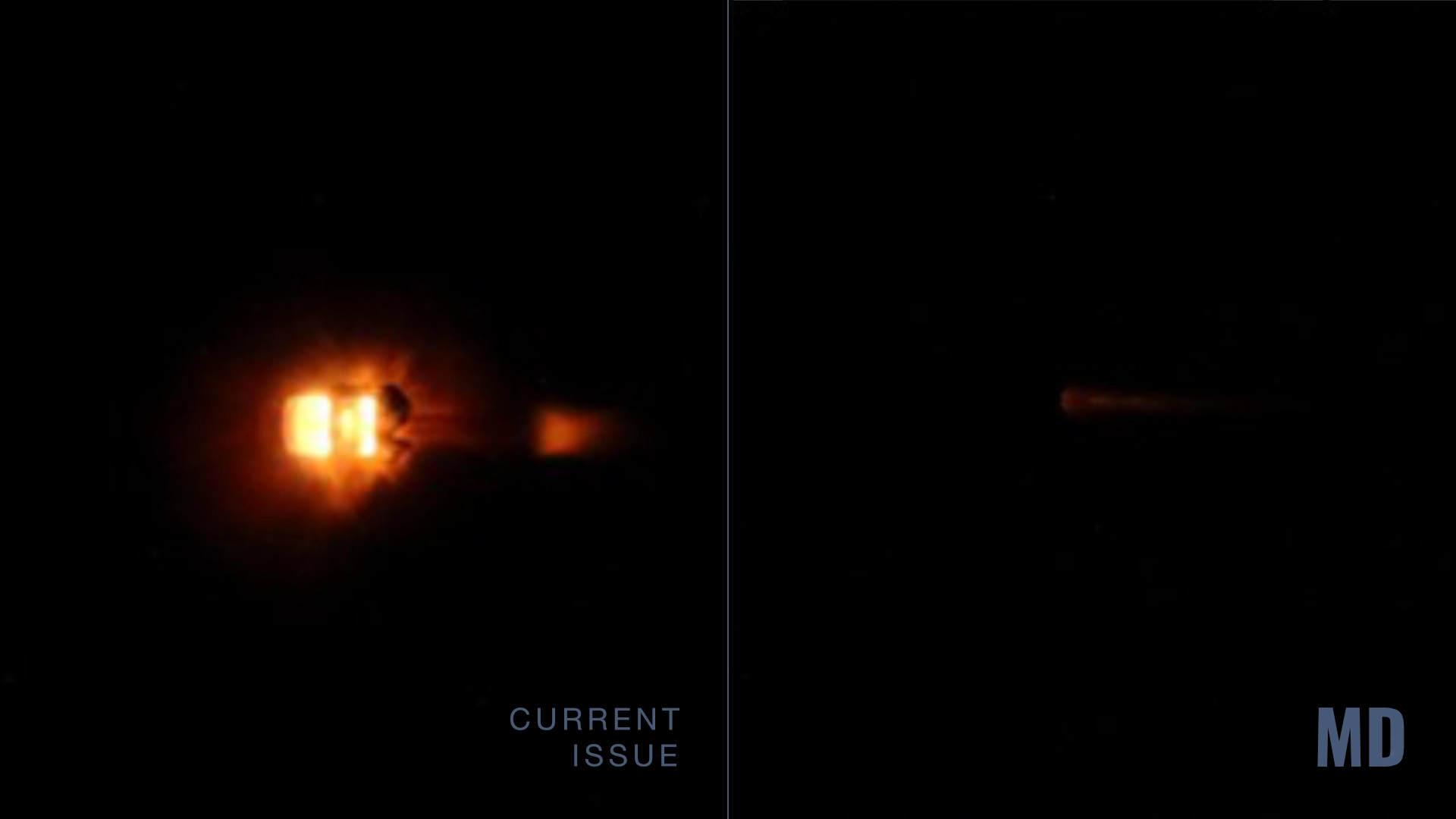

Flash Comparison Stills
Comparing the visual flash signature of the current issued flash hider versus the MFMD-6.5-2.8-MD-3/4X24C.
Forward-Directed Gas Flow: 45° View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-6.5-2.8-MD-3/4X24C.
Forward-Directed Gas Flow: Overhead View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-6.5-2.8-MD-3/4X24C.
Forward-Directed Gas Flow: Front View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-6.5-2.8-MD-3/4X24C.
Bolt Velocity Analysis
Weapon systems equipped with the MFMD-6.5-2.8-MD-3/4X24C have a bolt velocity change of ±2% when compared to baseline configurations across all firing schedules.
