MFMD-300BLK-0.0
As shown on SIG MCX-Spear LT 9″
Lab Data
SIG Sauer
MCX-Spear LT 9″
Performance Measurements Comparison
Performance Measurements Comparison
Performance Measurements Summary

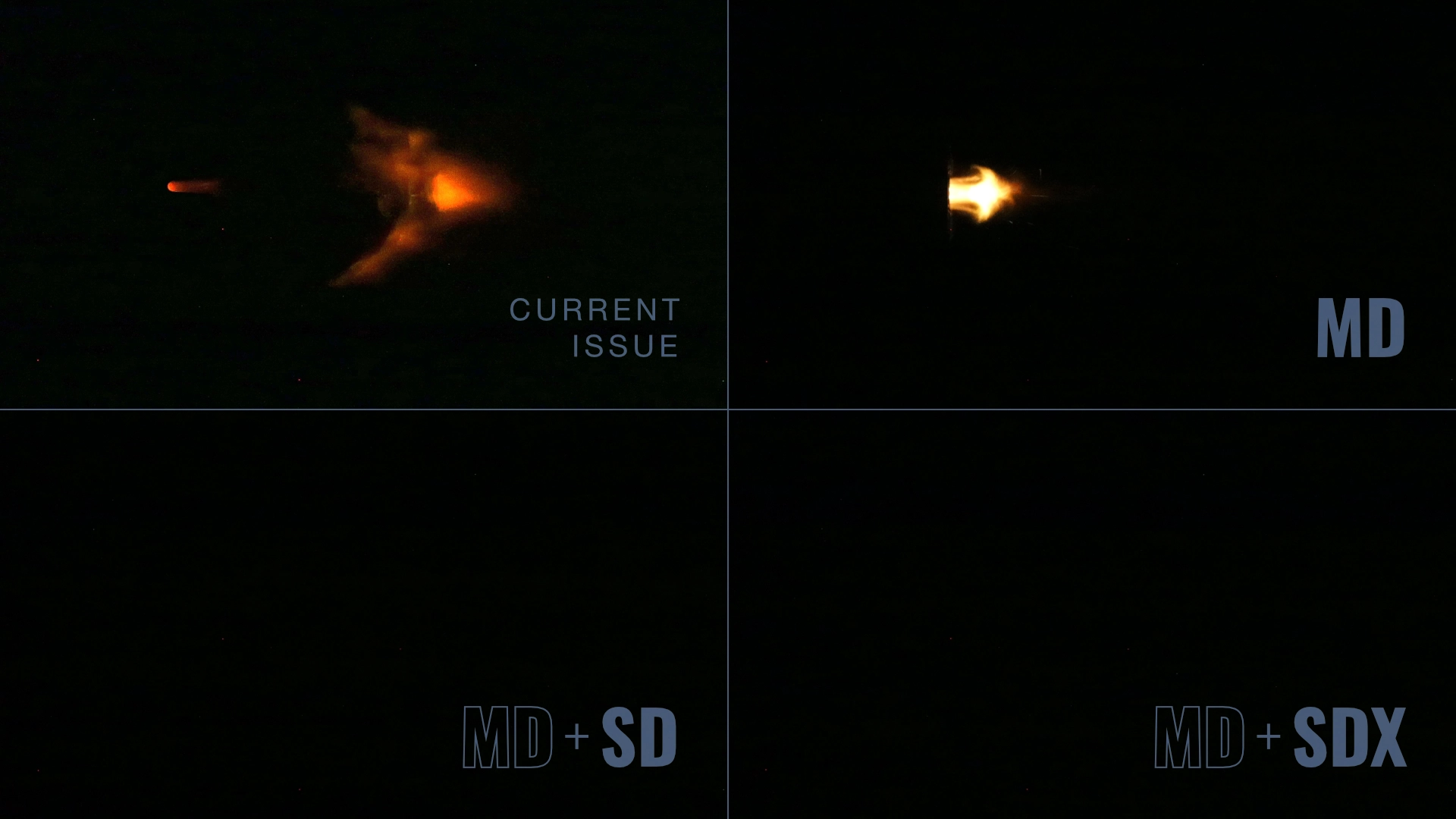

Flash Comparison Stills (Supersonic)
Comparing the visual flash signature of the current issued flash hider versus the MFMD-300BLK-0.0-MD-5/8X24 system in each available configuration: MD only, MD+SD, and MD+SDX.

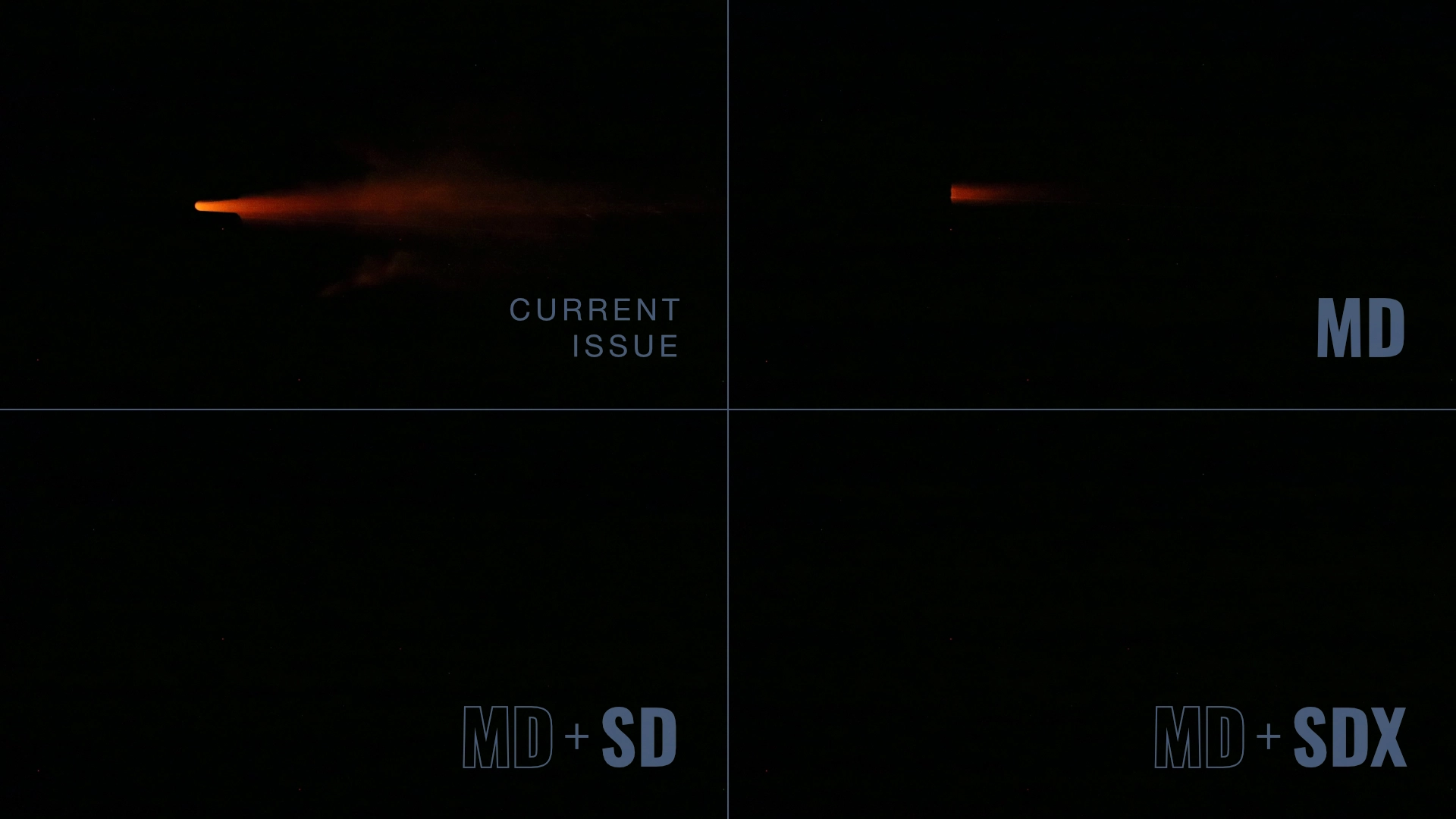

Flash Comparison Stills (Subsonic)
Comparing the visual flash signature of the current issued flash hider versus the MFMD-300BLK-0.0-MD-5/8X24 system in each available configuration: MD only, MD+SD, and MD+SDX.
MD Forward-Directed Gas Flow: 45° View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-300BLK-0.0-MD-5/8X24.
MD+SD Forward-Directed Gas Flow: 45° View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-300BLK-0.0-MD-5/8X24 with the SD attached.
MD+SDX Forward-Directed Gas Flow: 45° View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-300BLK-0.0-MD-5/8X24 with the SDX attached.
MD Forward-Directed Gas Flow: Overhead View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-300BLK-0.0-MD-5/8X24.
MD Forward-Directed Gas Flow: Front View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-300BLK-0.0-MD-5/8X24.
Bolt Velocity Analysis
Weapon systems equipped with the MFMD-300BLK-0.0-MD-5/8X24 have a bolt velocity change of ±2% when compared to baseline configurations across all firing schedules.
Fitment Requirements
Your weapon system must satisfy the following constraints in order to use MFMD-300BLK-0.0-MD-5/8X24.
