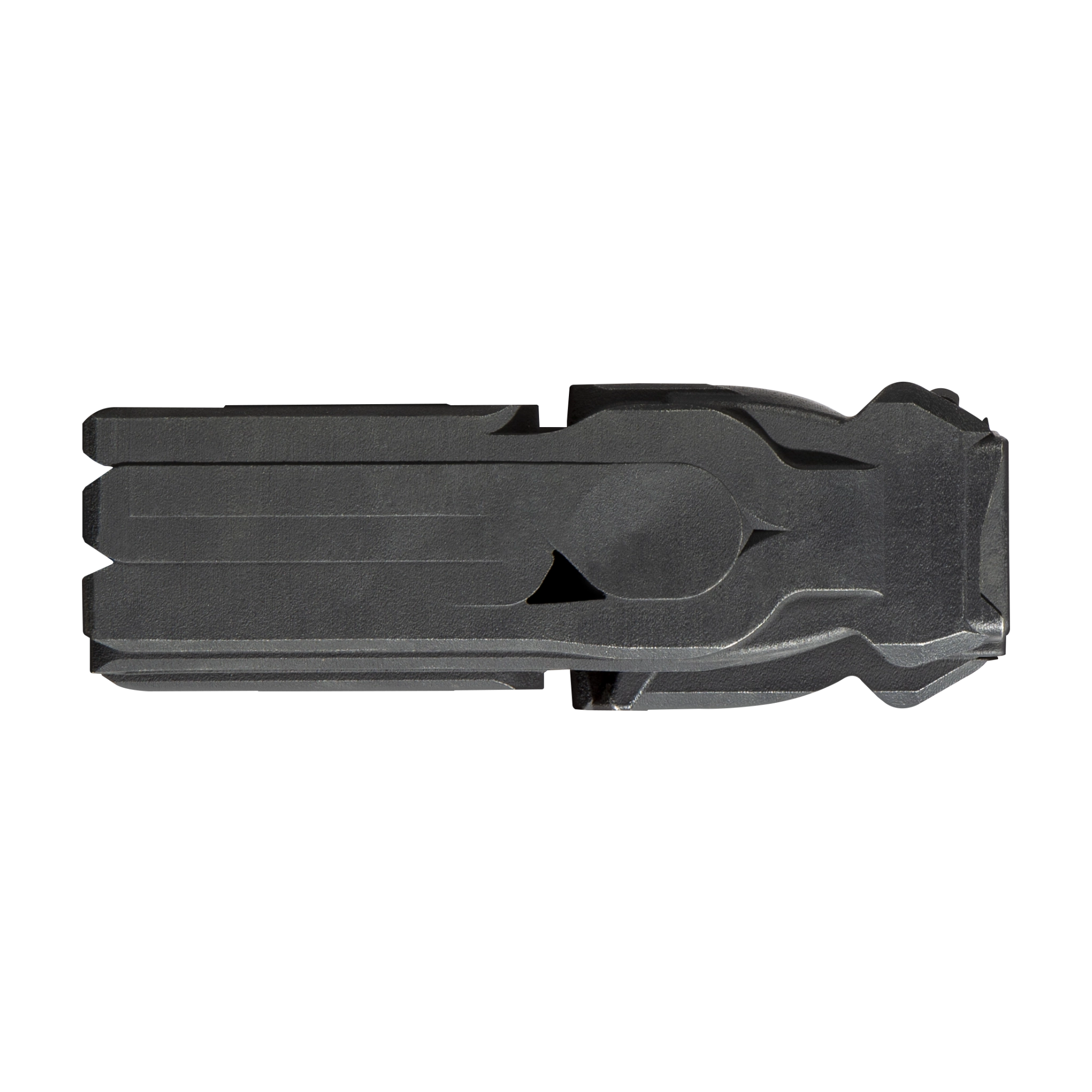

MFMD-7.62-3.0
As shown on SIG 716 G2 16″
Lab Data
SIG Sauer
716 G2 16″

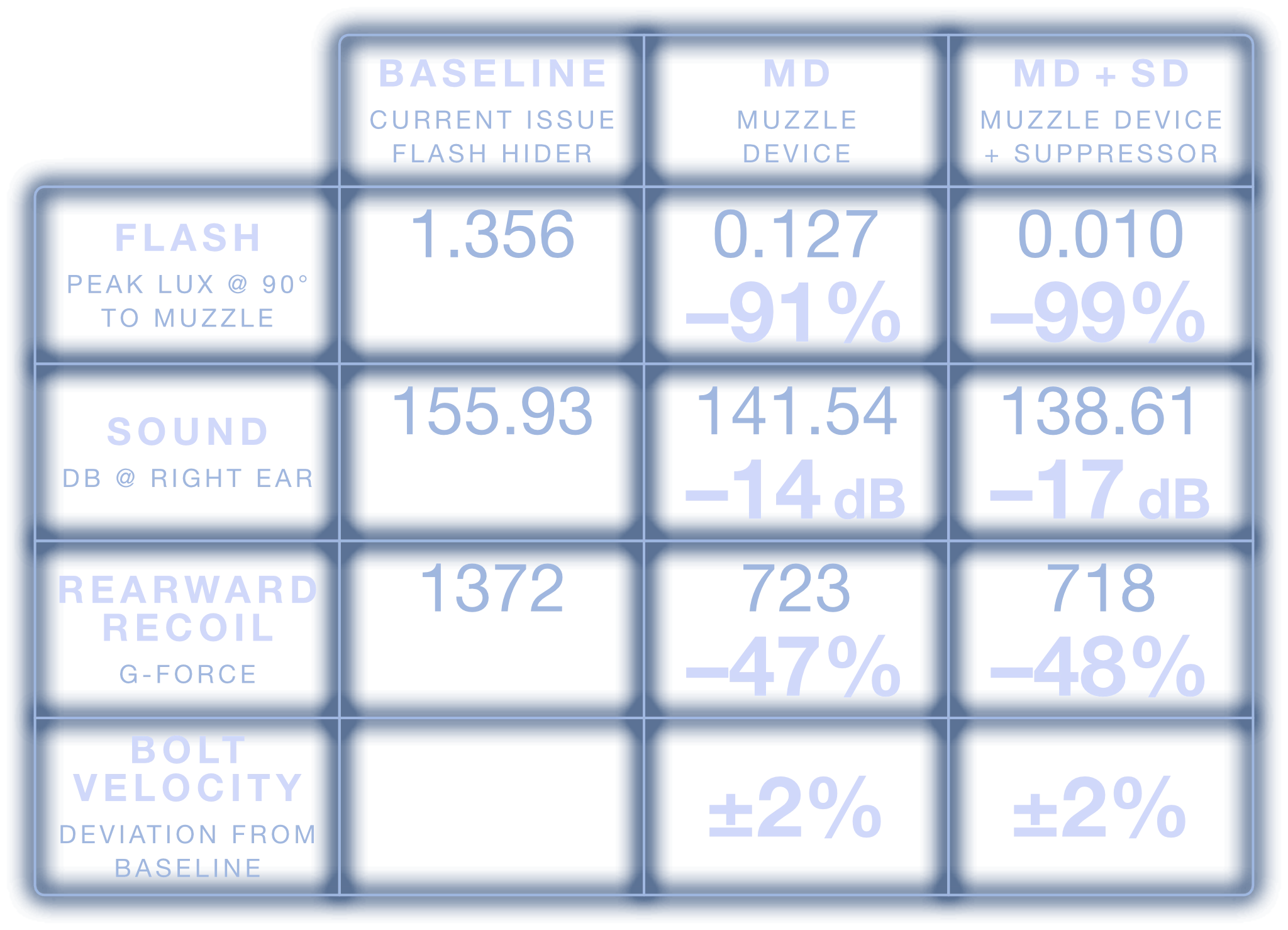

Performance Measurements Comparison
Performance Measurements Comparison

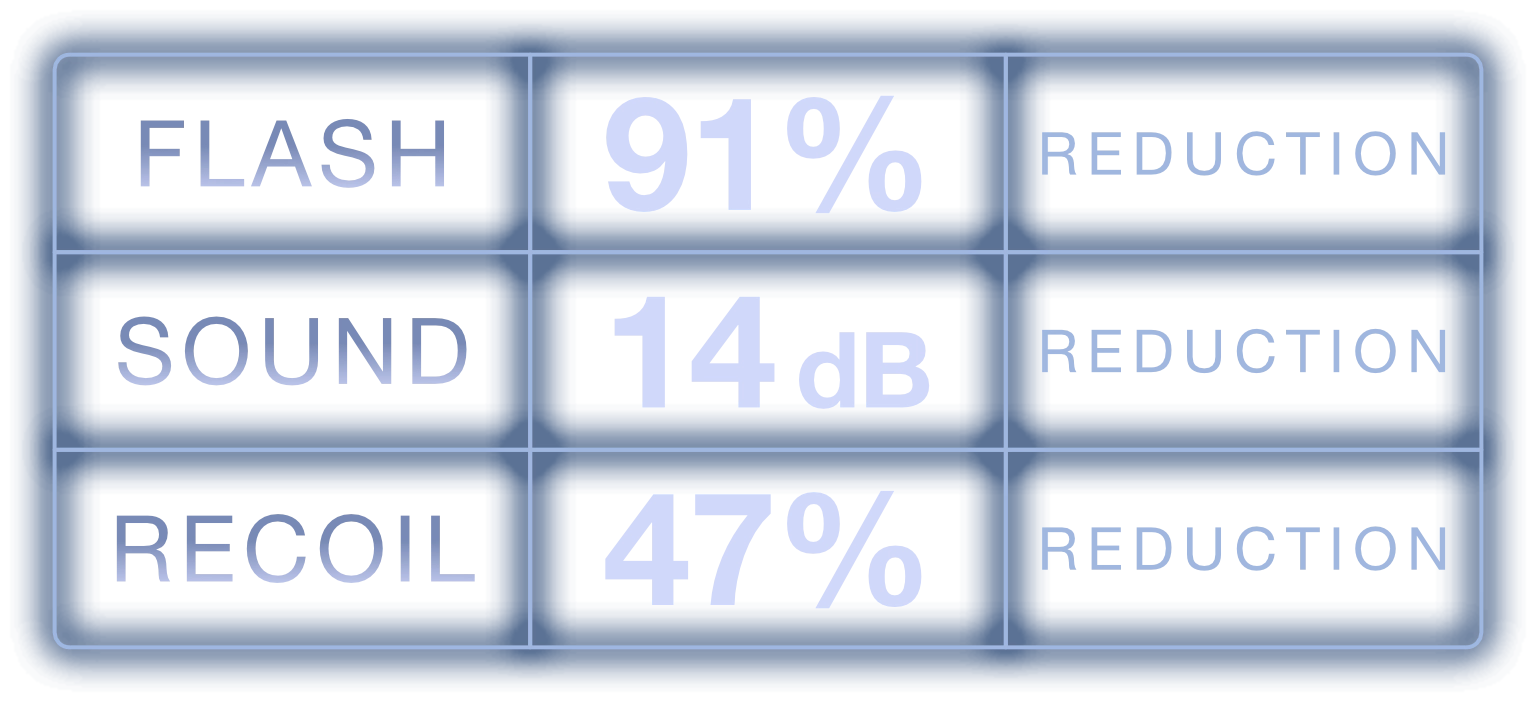

Performance Measurements Summary

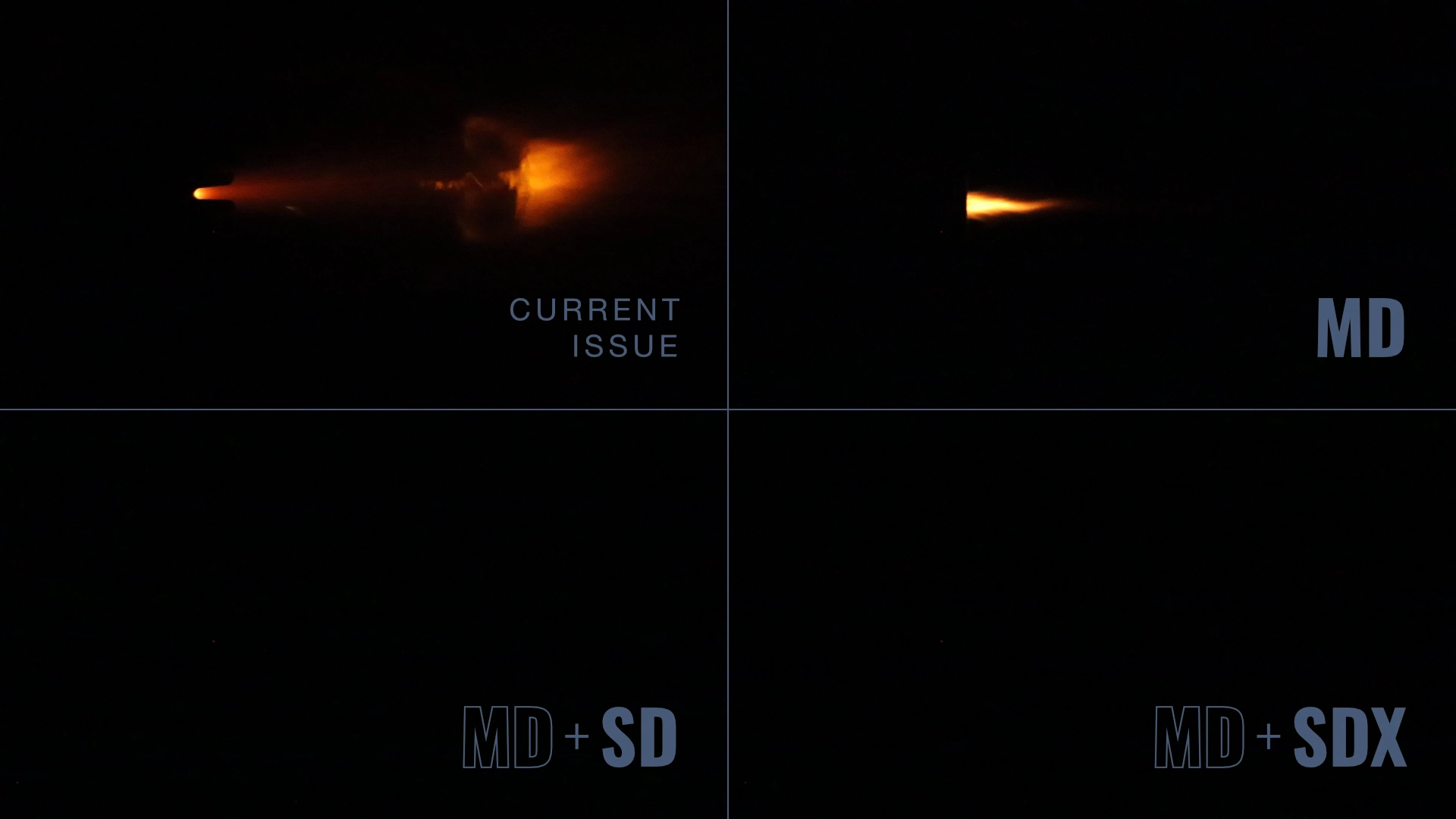

Flash Comparison Stills
Comparing the visual flash signature of the current issued flash hider versus the MFMD-7.62-3.0-MD-5/8X24 system in each available configuration: MD only, MD+SD, and MD+SDX.
MD Forward-Directed Gas Flow: 45° View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-3.0-MD-5/8X24.
MD+SD Forward-Directed Gas Flow: 45° View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-3.0-MD-5/8X24 with the SD attached.
MD+SDX Forward-Directed Gas Flow: 45° View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-3.0-MD-5/8X24 with the SDX attached.
MD Forward-Directed Gas Flow: Overhead View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-3.0-MD-5/8X24.
MD+SD Forward-Directed Gas Flow: Overhead View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-3.0-MD-5/8X24 with the SD attached.
MD+SDX Forward-Directed Gas Flow: Overhead View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-3.0-MD-5/8X24 with the SDX attached.
MD Forward-Directed Gas Flow: Front View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-3.0-MD-5/8X24.
MD+SD Forward-Directed Gas Flow: Front View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-3.0-MD-5/8X24 with the SD attached.
MD+SDX Forward-Directed Gas Flow: Front View
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-3.0-MD-5/8X24 with the SDX attached.
Bolt Velocity Analysis
Weapon systems equipped with the MFMD-7.62-3.0-MD-5/8X24 have a bolt velocity change of ±2% when compared to baseline configurations across all firing schedules.

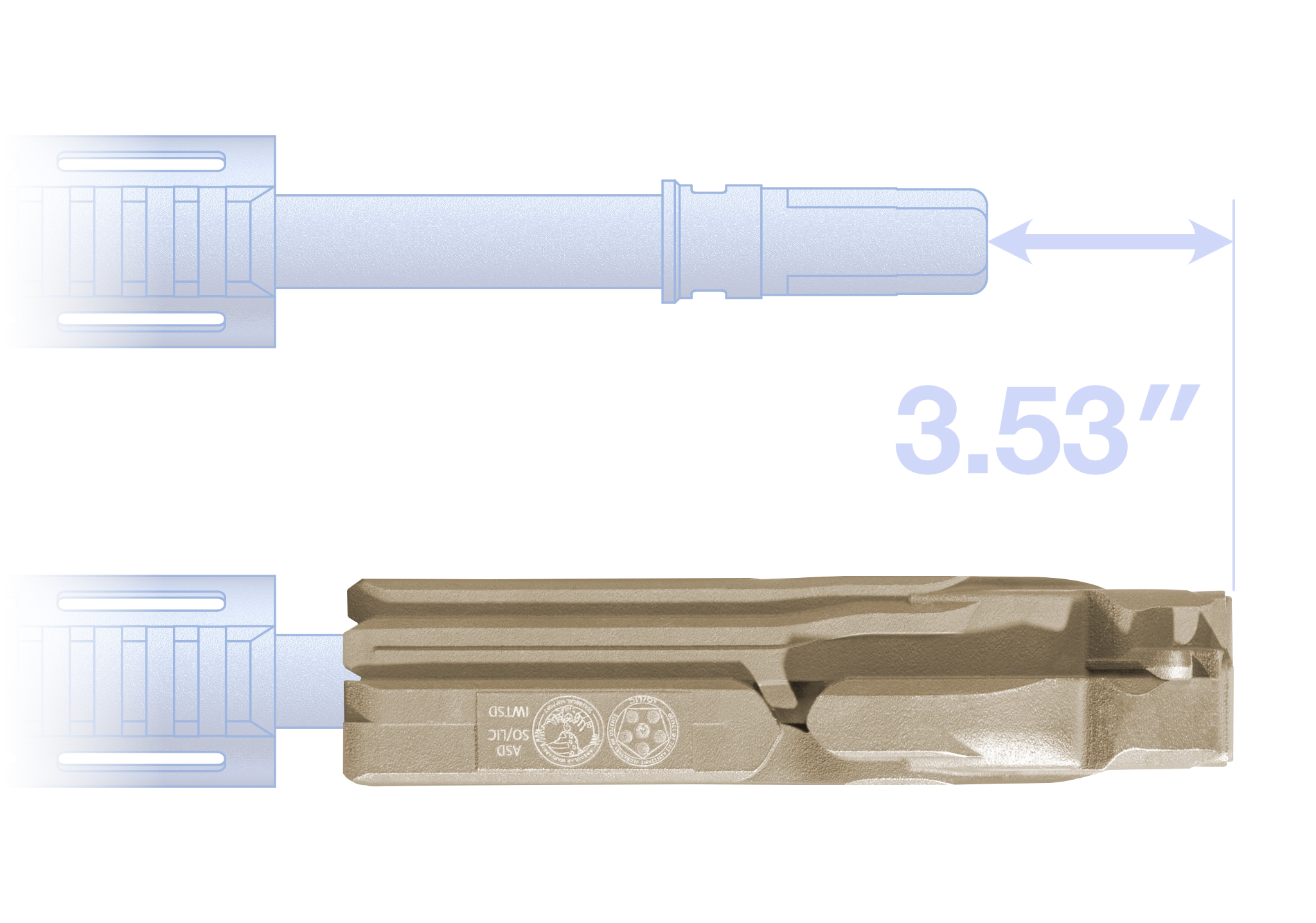

Fitment Requirements
Your weapon system must satisfy the following constraints in order to use MFMD-7.62-3.0-MD-5/8X24.
MFMD-7.62-3.0
