MFMD-7.62-3.0
As shown on FN SCAR 20S 20″
Lab Data
FN
SCAR 20S 20″
Performance Measurements Comparison
Performance Measurements Comparison
Performance Measurements Summary

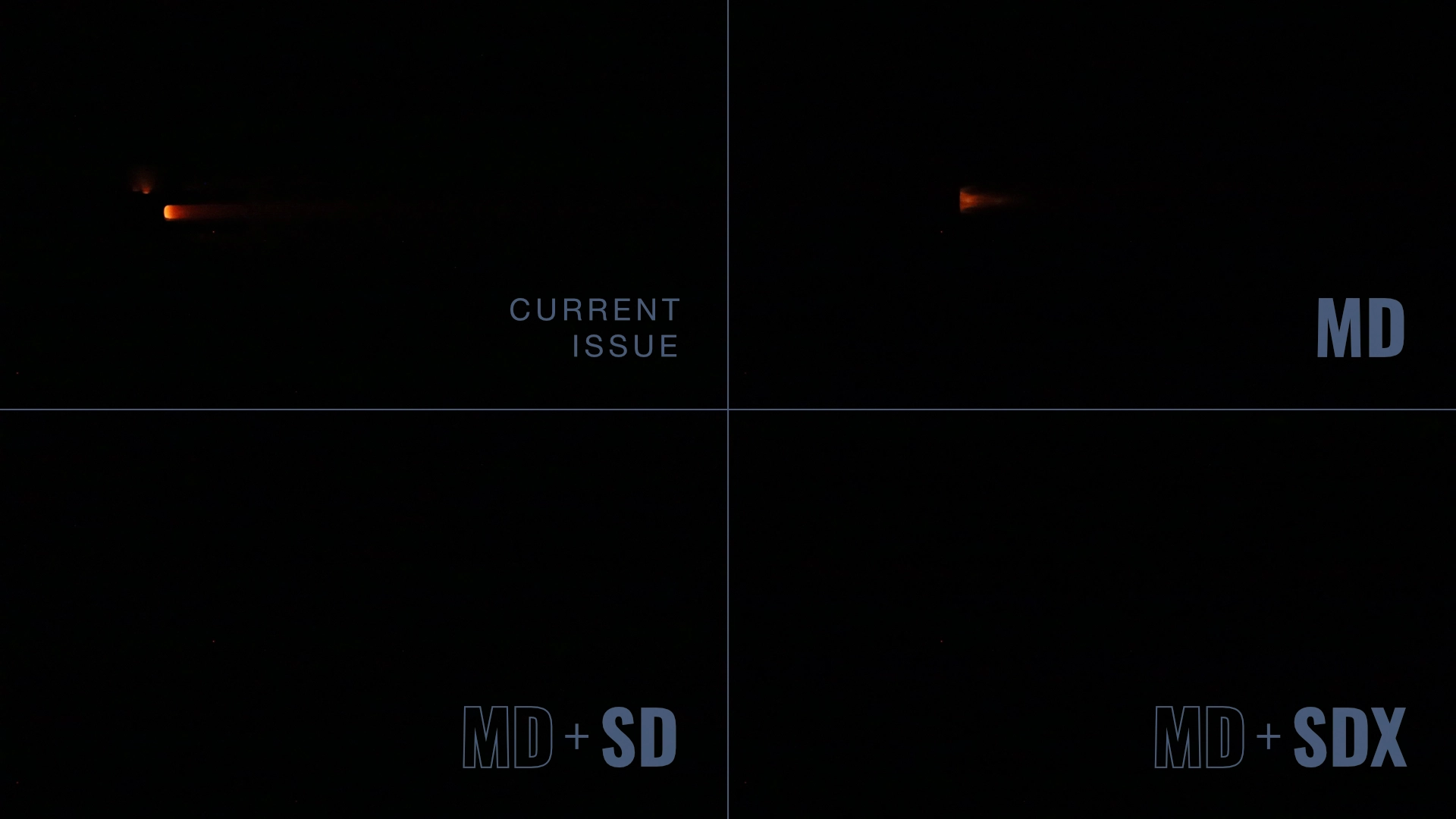

Flash Comparison Stills (5.9 OTB)
Comparing the visual flash signature of the current issued flash hider versus the MFMD-7.62-5.9-MD-5/8X24 system in each available configuration: MD only, MD+SD, and MD+SDX.
MD Forward-Directed Gas Flow: 45° View (5.9 OTB)
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-5.9-MD-5/8X24.
MD+SD Forward-Directed Gas Flow: 45° View (5.9 OTB)
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-5.9-MD-5/8X24 with the SD attached.
MD Forward-Directed Gas Flow: Front View (5.9 OTB)
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-5.9-MD-5/8X24.
MD+SD Forward-Directed Gas Flow: Front View (5.9 OTB)
10,000 FPS high-speed analysis of the exhaust gasses venting forward from the MFMD-7.62-5.9-MD-5/8X24 with the SD attached.
Bolt Velocity Analysis (5.9 OTB)
Weapon systems equipped with the MFMD-7.62-5.9-MD-5/8X24 have a bolt velocity change of ±2% when compared to baseline configurations across all firing schedules.
Fitment Requirements
Your weapon system must satisfy the following constraints in order to use MFMD-7.62-3.0-MD-5/8X24.
MFMD-7.62-3.0
